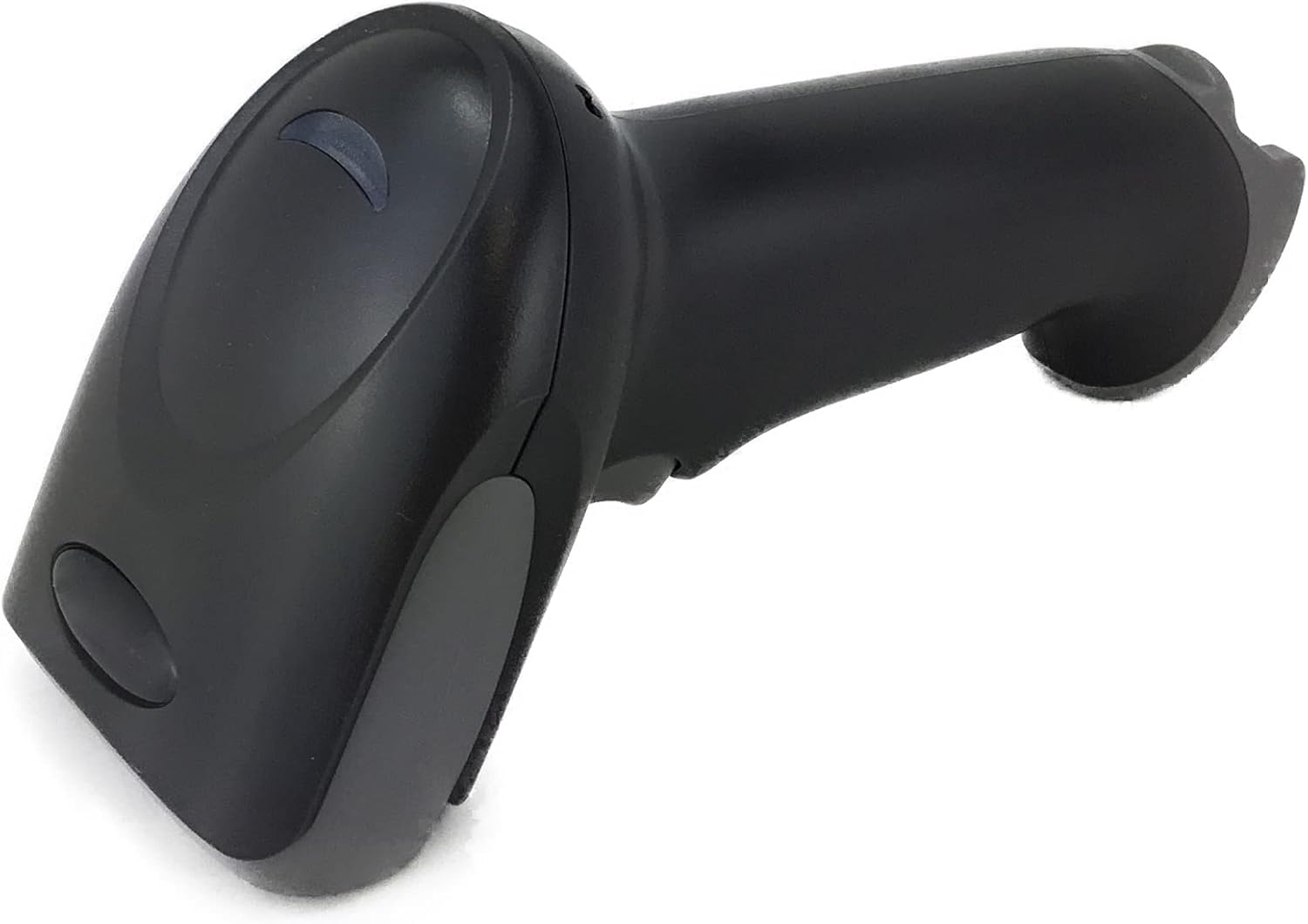

The Honeywell Voyager XP 1472g Barcode Scanner is a robust and versatile solution for businesses needing efficient 1D and 2D barcode reading. With superior durability and advanced scanning performance, it is designed to meet the demands of industries adopting 2D barcoding.
Equipped with Bluetooth v4.2 and a long-lasting 2400 mAh battery, the scanner offers wireless freedom, ensuring seamless operation across a range of workflows. Its omnidirectional scanning capabilities and high-resolution area imaging make it a reliable and future-proof investment for enterprises of all sizes.
- Reads standard 1D, PDF, 2D, and DotCode symbologies with ease.
- Omnidirectional scanning with an area image (1040 x 720 pixel array).
- Motion tolerance of up to 70 cm/s for fast-paced environments.
- Bluetooth v4.2 with Adaptive Frequency Hopping for robust wireless communication.
- Operating range of up to 100 m (300 ft) line of sight.
- IP52 environmental sealing for protection against dust and water.
- Withstands 30 drops from 1.8 m (6 ft) to concrete and 1,000 tumbles at 0.5 m (1.6 ft).
- 2400 mAh Li-ion battery supports up to 50,000 scans per charge.
- Operates for 14 hours and fully charges in just 4.5 hours.
- Equipped with decode LEDs, rear view LEDs, and an adjustable beeper for seamless feedback.
- Operates in temperatures ranging from 0°C to 50°C (32°F to 122°F).
- Tolerates storage temperatures as extreme as -40°C to 60°C (-40°F to 140°F).
| Brand | Honeywell |
| Model Name | Voyager XP 1472g |
| WIRELESS | |
| Radio/Range | 2.4 GHz to 2.5 GHz(ISM Band) |
| Adaptive Frequency Hopping Bluetooth v4.2 | |
| 100 m (300 ft) line of sight | |
| Power Options | |
| Batter | 2400 mAh Li-ion minimum |
| Number of Scans | Up to 50,000 scans per charge |
| Expected Duration of Operation | 14 hours |
| Expected Charge Time | 4.5 hours |
| User Indicators | Decode LEDs, Rear View LEDs, Beeper (adjustable |
| tone and volume) | |
| ENVIRONMENTAL | |
| Operating Temperature | |
| Scanner | |
| Charging | 5°C to 40°C (41°F to 104°F) |
| Non-Charging | 0°C to 50°C (23°F to 122°F) |
| Charger/Communication Base | |
| Charging | 5°C to 40°C (41°F to 104°F) |
| Non-Charging | 0°C to 50°C(32°F to 122°F) |
| Storage Temperature | |
| Scanner | -40°C to 60°C (-40°F to 140°F) |
| Charger/Communication Base | -40°C to 70°C (-40°F to 158°F) |
| Electrostatic Discharge (ESD) (Scanners and Cradles) | ±8 kV indirect coupling plane, ±15 kV direct air |
| Humidity | 0% to 95% relative humidity, non-condensing |
| Light Levels | 0 to 100,000 lux (9,290 foot-candles) |
| Tumble Spec | 1,000 0.5 m (1.6 ft) |
| tumbles | |
| Drop | 30 1.8 m (6 ft) drops to concrete |
| Environmental Sealing | IP52 |
| Light Levels | 0 to 100,000 lux (9,290 foot-candles) |
| SCAN PERFORMANCE | |
| Area Image (1040 x 720 pixel array) | |
| Scan Pattern | |
| Motion Tolerance | 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus |
| Print contrast | 15% |
| Scan Angle | |
| Horizontal | 39.2° nominal |
| Vertical | 27.4° nominal Roll, Pitch, Skew: ±180°, ±65°, ±70° |
| Barcode Types | Reads standard 1D, PDF, 2D, and DotCode symbologies |
| Note | Decode capabilities dependent on configuration. |
| Warranty | 3-year factory warranty |
| DECODE RANGES (DoF) | |
| TYPICAL PERFORMANCE | STANDARD RANGE (SR) |
| 5 mil Code 39 | 20 mm – 205 mm (0.8 in – 8.1 in) |
| 13 mil UPC | 18 mm – 400 mm (0.7 in – 15.8 in) |
| 6.7 mil PDF417 | 15 mm – 185 mm (0.6 in – 7.3 in) |
| 10 mil Data Matrix | 10 mm – 165 mm (0.4 in – 6.5 in) |
| 20 mil QR | 5 mm – 325 mm (0.2 in – 12.8 in) |
