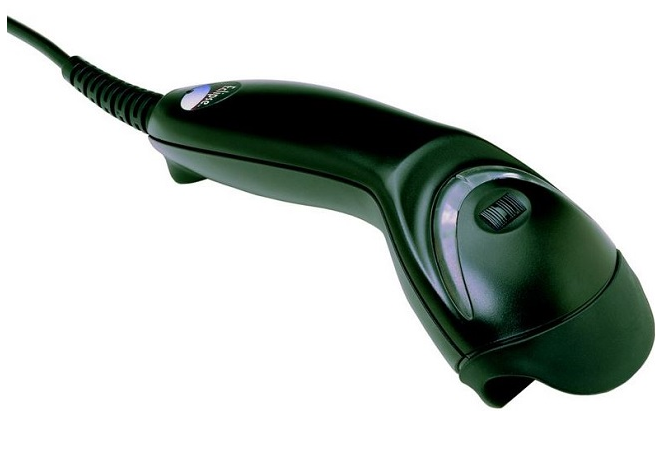

The Honeywell MK5145 Eclipse is a compact, lightweight, and affordable barcode scanner designed for single-line laser scanning. It features CodeGate® technology, which enables users to aim at a barcode before transmitting the data, reducing scanning errors and improving efficiency in applications such as retail checkouts, libraries, and document management.

With Honeywell’s advanced laser technology, the MK5145 Eclipse provides fast and accurate scanning even for poorly printed or damaged barcodes. The scanner offers automatic activation with its infrared (IR) sensor, allowing for a seamless scanning experience. Its ergonomic and lightweight design makes it comfortable for extended use, and it is compatible with various interfaces, including USB, keyboard wedge, and RS-232 serial connections.

Key Specifications:

• Scanner Type: Handheld, single-line laser scanner

• Scan Pattern: Single-line laser scanning

• Scan Speed: 72 scans per second

• Barcode Types Supported:

  • 1D Barcodes: UPC/EAN, Code 39, Code 128, Interleaved 2 of 5, Codabar, GS1 DataBar, and more

• Connectivity: USB, Keyboard Wedge, RS-232 Serial

• Depth of Field (Scanning Distance):

  • 0 – 140 mm (for standard barcode sizes)

• Operating Voltage: 5V DC ± 0.25V

• Power Consumption:

  • Operating: 675mW (125mA @ 5V)

  • Standby: 425mW (85mA @ 5V)

• Light Source: 650 nm visible laser diode

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -40°C to 60°C (-40°F to 140°F)

• Drop Resistance: Withstands multiple drops from 1.5 meters (5 feet)

• Dimensions: 169mm x 63mm x 51mm (6.7" x 2.5" x 2.0")

• Weight: 100g (3.5 oz)

Key Features:

• CodeGate® Technology: Allows users to aim and scan with precision, reducing errors.

• Infrared (IR) Auto-Activation: Enables hands-free operation by detecting barcodes automatically.

• Fast Scanning Speed: 72 scans per second for quick barcode reading.

• Compact and Lightweight Design: Easy to handle and use for extended periods.

• Multiple Interface Support: Compatible with USB, RS-232, and keyboard wedge connections.

• Durable Construction: Withstands multiple 1.5-meter drops, ensuring long-term reliability.
