The Retsol D-5025BT+ is a high-performance 2D wireless barcode scanner with Bluetooth 4.0 and USB support. With a scan speed of 640 scans per second, it reads both 1D and 2D barcodes from paper or screen, making it ideal for retail, warehouse, logistics, and healthcare environments.
The Retsol D-5025BT+ is a next-generation 2D wireless barcode scanner designed for versatility and performance. Powered by a CMOS imaging engine, it can read all standard 1D and 2D barcodes — including QR codes, Data Matrix, and PDF417 — even from mobile phone screens and damaged or poorly printed labels.

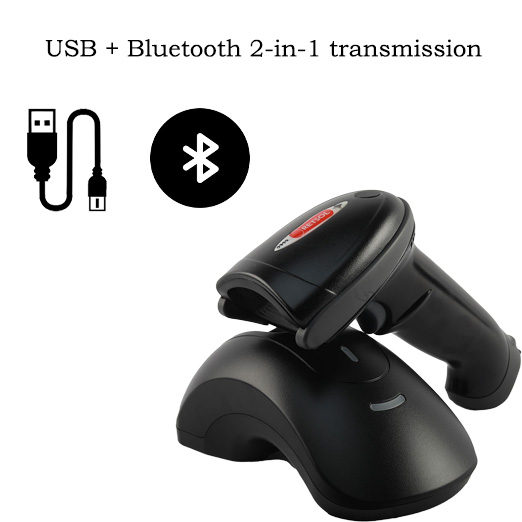

With Bluetooth 4.0 connectivity, the D-5025BT+ offers a wireless range of up to 100 meters in open space, enabling smooth operation across wide areas such as warehouses or large retail spaces. It also supports USB wired operation, giving flexibility to switch between wireless and wired modes.
The scanner is built to be durable, withstanding drops of up to 1.5 meters, and features motion tolerance, pitch/roll/skew detection**, and auto-sensing scanning modes for convenience and speed.
Whether you’re scanning items at the POS, verifying inventory, or managing patient records, the D-5025BT+ delivers accuracy, speed, and reliability every time.
| Feature | Details |
|---|---|
| Model | Retsol D-5025BT+ |
| Scan Engine | CMOS Image Sensor |
| Barcode Types Supported | 1D & 2D (e.g. QR Code, Data Matrix, PDF417, EAN, Code 128, UPC, etc.) |
| Scan Speed | 640 scans/sec |
| Interface | Bluetooth 4.0, USB |
| Wireless Range | Up to 100 meters (open space) |
| Motion Tolerance | Up to 25 inches/second |
| Pitch Tolerance | ±65° |
| Skew Tolerance | ±60° |
| Roll Tolerance | 360° |
| Drop Resistance | Withstands drops from 1.5 meters |

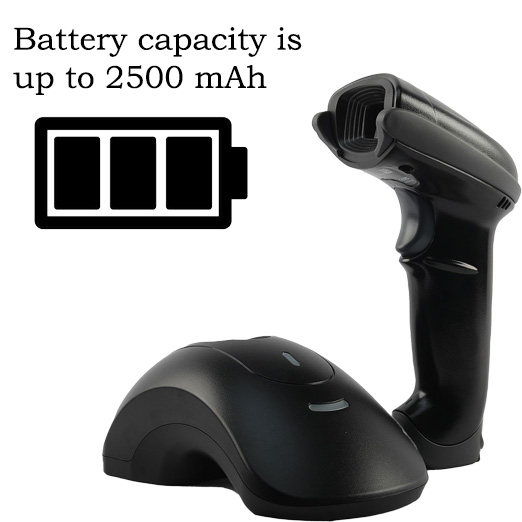

| Battery | Rechargeable, 2500 mAh (replaceable) |
| Charging Method | USB cable |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 0% to 95% non-condensing |
| Weight | ~300g |
| Dimensions | Approx. 180 x 95 x 70 mm |
