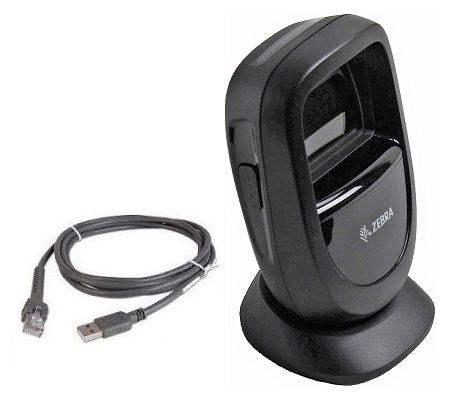

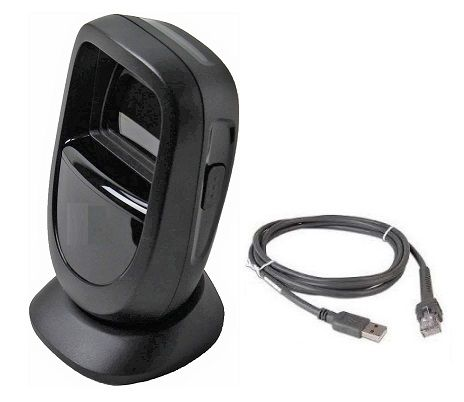

The Zebra DS9308 is a 2D barcode scanner designed for high-volume retail and point-of-sale (POS) environments. With its compact, countertop form factor, the DS9308 allows businesses to save valuable space while still providing robust performance. The scanner features omnidirectional scanning that supports a wide range of 1D and 2D barcodes, including QR codes and PDF417, on paper, mobile phone screens, or plastic cards. Its ergonomic design ensures that customers and staff can quickly and easily scan barcodes without needing to orient the code. The Zebra DS9308 delivers exceptional scanning speed and accuracy, helping businesses streamline transactions and improve customer experience at the checkout counter. The scanner is also built to withstand daily wear and tear, offering reliable durability in a retail setting.

Key Specifications:

• Scanner Type: Fixed-mount 2D imager (tabletop)

• Scan Pattern: Omnidirectional 2D imaging (imager scan engine)

• Scan Speed: 1000 scans per second (fast scanning)

• Barcode Types Supported:

  • 1D: UPC/EAN, Code 39, Code 128, Interleaved 2 of 5, Codabar, and more

  • 2D: QR Code, PDF417, DataMatrix, Aztec, Maxicode, and more

• Connection Type: USB, RS-232, Keyboard wedge, or HID

• Operating Voltage: 5V ±10% DC

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Storage Temperature: -40°C to 60°C (-40°F to 140°F)

• Drop Specification: Withstands 1.5-meter (5-ft) drops to concrete

• Dimensions: 124mm x 120mm x 112mm (4.9" x 4.7" x 4.4")

• Weight: 227g (8 oz)

• Cable Length (Optional): 2.5m (8ft) coiled or straight cable options

• Warranty: 5 years (limited)

Key Features:

• Omnidirectional Scanning: Quickly scans barcodes from any angle, improving ease of use and customer experience.

• High Scanning Performance: Fast and accurate reading of both 1D and 2D barcodes, even those that are poorly printed or damaged.

• Compact Design: Ideal for retail checkout counters where space is limited.

• Durability: Designed to withstand drops and bumps in busy retail environments.

• Mobile Phone Barcode Scanning: Capable of scanning barcodes on mobile phone screens for added flexibility.

The Zebra DS9308 is a great choice for retailers and businesses looking for a high-performance, space-efficient, and durable 2D scanner to enhance their checkout or service process. Its versatility and ability to handle both 1D and 2D barcodes make it suitable for a wide range of applications in retail, hospitality, and other customer-facing environments.
