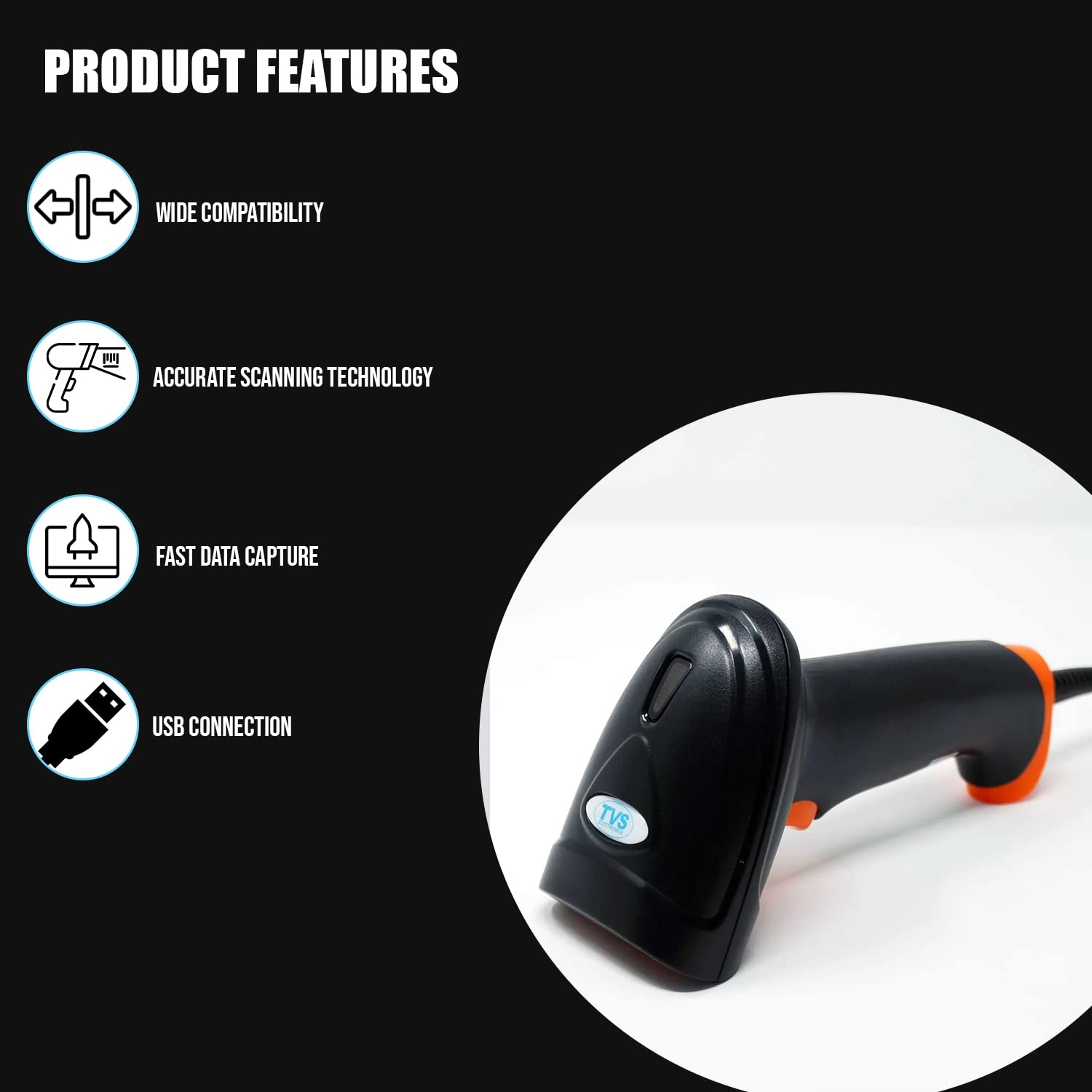

BS-L100 Plus is an affordable handheld Laser scanner that allows the user to easily target the desired bar code and provide complete data transmission by just triggering a button. This Laser scanner fits in various environments starting from small warehouses, offices, and retail shops.
ADVANTAGES
Reasonable cost and reliable option
Minimal divergence of Laser beam provides high Depth of Focus on Bar codes

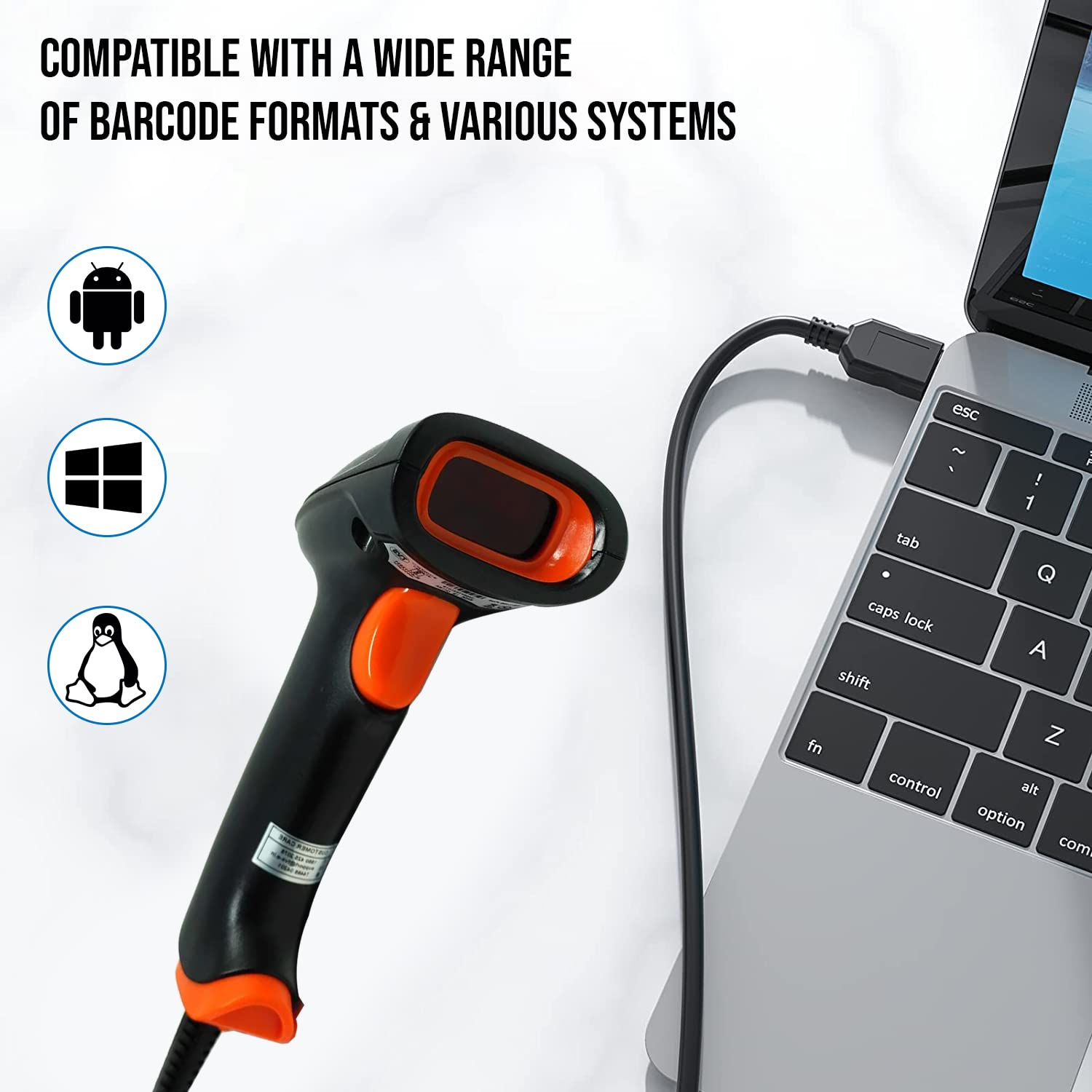

Reads all standard 1D bar codes
|
SPECIFICATIONS
|
|
|
Light source
|
650 mm Laser
|
|
Supported symbologies
|
EAN8, EAN13, UPCA, UPCE, CODE 39, CODE 93, CODE 128, EAN 128, Codabar, Industrial 2 of 5, Intrleave 2 of 5, Matrix 2 of 5, MSI and all 1D bar codes
|
|
Scan Type
|
Single Laser
|
|
Span Speed
|
300 scans/sec
|
|
Scan angle
|
Yaw 55°, Rotation 30°, Pitch 65°
|
|
Precision
|
>4 mil
|
|
Contrast
|
>20 %
|
|
Depth of Scan Field
|
0280 mm
|
|
Error rate
|
Less than 1/5 million
|
|
Interface
|
USB
|
|
Dimensions
|
90mm * 66mm * 173mm
|
|
weight
|
129.5 g
|
|
Cable length
|
2 M
|
|
Operating Temperature
|
20°C~50°C
|
|
Relative Humidity
|
5%~95%
|
|
Lux
|
30008000 Lux
|
|
Drop/Shock resistance
|
Withstands a 1.5m drop from concrete
|
|
Voltage
|
DC 5V ± 1%
|
|
Operating Current
|
85 mA
|
|
IP Rating
|
IP 51
|
