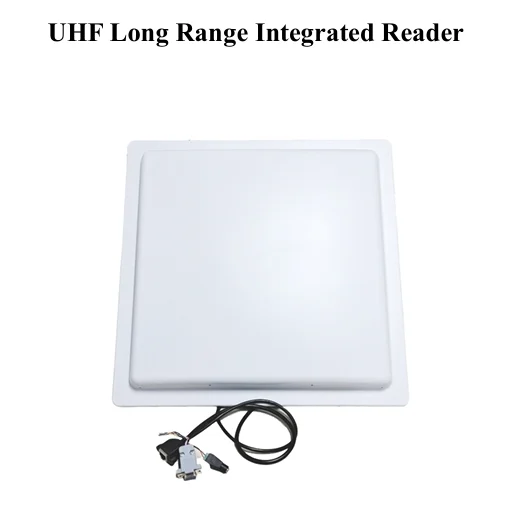

Long Range UHF Integrated Reader - 88 is a powerful RFID reader with an integrated antenna, offering long-range reading up to 12 meters. Ideal for vehicle access, asset tracking, and gate automation in outdoor and industrial settings.
Long Range UHF Integrated Reader - 88 is a high-performance UHF RFID reader with a built-in directional antenna, designed for long-range identification applications. Operating in the 860–960 MHz frequency band and compliant with EPC Gen2 / ISO18000-6C standards, it provides accurate and fast reading of passive RFID tags at distances of up to 10–12 meters, depending on the tag and environment.
PHYSICAL PARAMETER
|
Dimensions |
445mm x 445mm x 55mm |
|
Weight |
2.35 Kg |
|
Power Supply |
100-240V, DC+9V (Power Adapter) |
|
Power Consumption |
1 W |
|
Interface |
RS232, RS485, Wiegand 26/34 (TCP/IP & Wi-Fi Optional ) |
|
Indicators |
Buzzer |
|
Software Support |
SDK Provided |
|
Housing |
ABS Plastic |
|
Power Consumption |
10W |
ENVIRONMENTAL SPECIFICATION
|
Temperature |
-25oC to +60oC (Operating), -25oC to +80oC (Storage) |
|
Humidity |
5% RH – 95% RH non condensing |
|
Protection Class |
IP 65 |
UHF RFID
|
Work Frequency |
Standard ISM 865-867 MHz (IND),865-868 MHz (EU), 902-928 MHz (US) |
|
Air Interface Protocol |
ISO18000-6B, EPC Class 1 Gen2 (ISO18000-6C) |
|
Read Range |
0 – 15m |
|
Write Range |
0 – 6m |
|
Antenna |
Built-in 12dBi linear/circular polarized antenna |
|
Operating Mode |
Answer, Active, Trigger |
|
Reading Rate |
Software Programmable |
|
SDP |
Provided DLL and Demonstration Software Source code to Facilitate |
|
Power Output |
0-30 dBm (adjustable) |
|
Frequency Hopping |
FHSS |
COMMUNICATION INTERFACE
|
BSD 88 S |
KS232/485, Weigand 26/34 |
|
BSD 88 L |
KS232/485, Weigand 26/34, Ethernet |
|
BSD 88 LW |
KS232/485, Weigand 26/34, Ethernet, WiFi |
|
BSD 8 LB |
KS232/485, Weigand 26/34, Ethernet, WiFi, Bluetooth |
