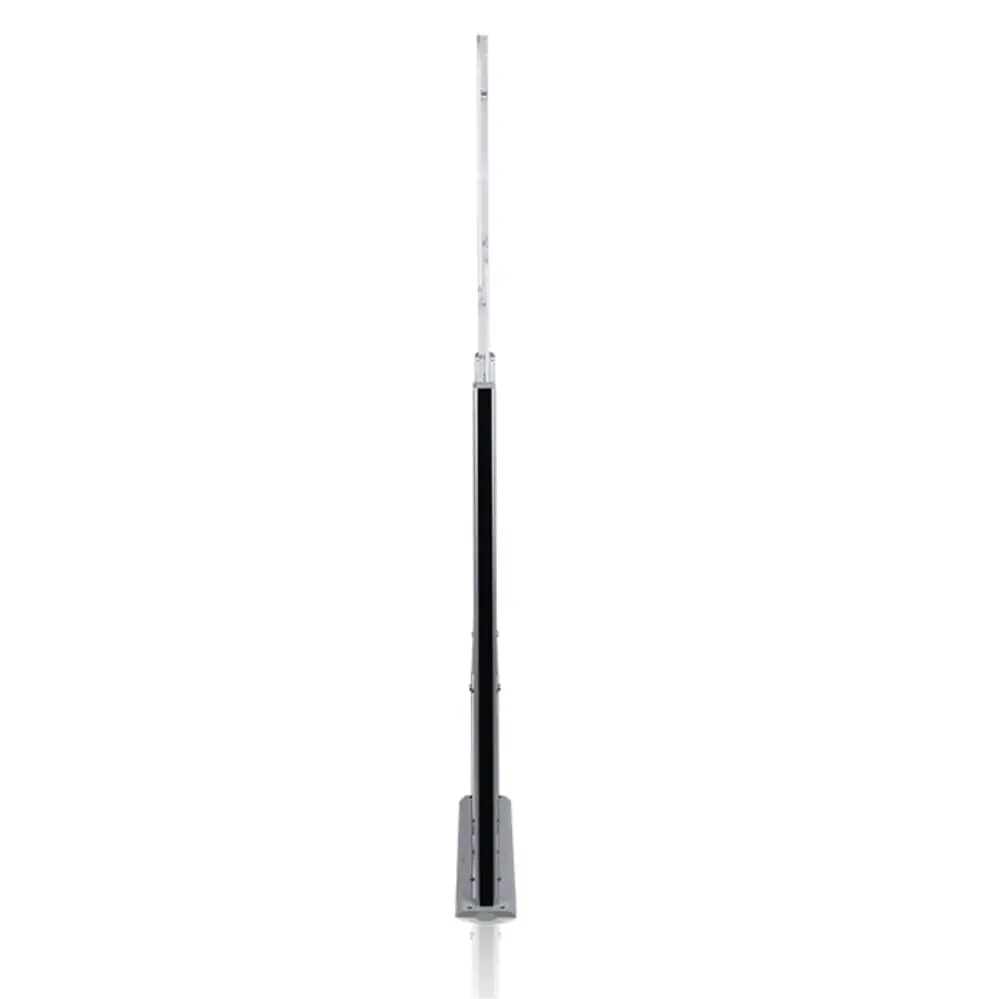

BSD RFID HF Portal is a robust RFID Gate having two pedestals and can read tags up to one meter away. The equipment supports RFID tags in accordance with ISO/IEC 15693 and ISO 18000-3 standard. To cover a larger area, additional panels can be added in a cascading fashion. It’s ergonomic design makes it ideal for Jewelry Management, Asset Management, Logistics, Manufacturing, Retail, Hospitals, and Libraries. HF RFID Gate Readers have an inbuilt motion detector to allow only persons with a valid RFID tag or card to access the premises. The RFID HF Portal increases the process efficiency resulting in the reduction of labor/manpower needed & increases the productivity of the company by many folds.
BSD RFID HF Portal is a robust RFID Gate compliant with ISO/IEC 15693 and ISO 18000-3 standard having two pedestals and can read tags up to one meter away. To cover a larger area, additional panels can be added in a cascading fashion. It’s ergonomic design makes it ideal for Jewelry Management, Asset Management, Logistics, Manufacturing, Retail, Hospitals, and Libraries. HF RFID Gate Readers have an inbuilt motion detector to allow only persons with a valid RFID tag or card to access the premises. The channel identification range is approximately 1 m. (The identification distance is related with tag performance, size, site environment and so on). To prevent theft and other issues, this device can be widely used in libraries and archives. The RFID HF Portal increases the process efficiency resulting in the reduction of labor/manpower needed & increases the productivity of the company by many folds. As one of the leading RFID antenna manufacturers, the BSD HF PORTAL is available in two standard versions (ISO/IEC 15693 and ISO 18000-3), providing customers with the flexibility to match performance and aesthetic requirements based on the application.
PHYSICAL PARAMETER
|
Dimension |
180cm x 64cm x 5cm +/- 10mm |
|
Weight |
15 Kg |
|
Indicators |
LED & Buzzer |
|
Housing |
Acrylic Transparent and Metallic Base |
ENVIRONMENTAL SPECIFICATION
|
Temperature |
-25oC to +50oC (Operating), -25oC to +70oC (Storage) |
|
Protection Class |
IP 54 |
|
Humidity |
5% RH – 95% RH non condensing |
HF RFID
|
Work Frequency |
13.56 MHz |
|
Protocol |
ISO 15693, ISO 18000-3-A |
|
Read Range |
Up to 120 cm (depend on tag performance) |
|
No. of Towers |
2 |
|
Packing |
In wooden Box |
|
Power Supply |
24 V +/- 15%, Noise Ripple: max. 150 mV |
|
Power Consumption |
2max. 32 VA |
|
Maximum transmitting power per antenna |
8 W |
|
Automatic alarm function without host connection |
EAS, AFI, UID / SNR |
