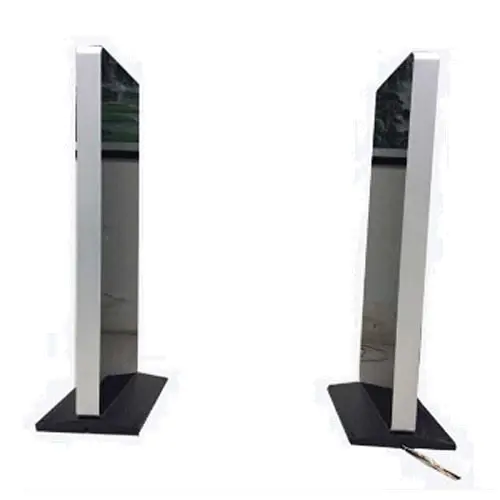

BSD RFID UHF Portal is a compact RFID Gate specially designed for superior reading performance in harsh industrial environments. It’s ergonomic design makes it ideal for Inventory Management, Asset Management, Logistics, Manufacturing, Retail, Hospitals, and Libraries. It has Red & Green LED Lights that indicate Standby Mode and Inventory Mode . The High-performance portal is meant for use in doorways, hallways, or access points, and can also provide general zone coverage, for application in offices, institutions such as healthcare facilities, retail, or attendance or access control applications and is ideal for monitoring pallets, assets, equipment, files or people.
BSD Infotech provides an indigenously built UHF RFID Portal, can be used for an advanced management system for automation in the Libraries, Retail, Warehouses, Offices, Schools or Universities for Attendance Management system etc. Typically mounted at the entrance and/or exit of a location, the gate reader confirms or updates the material status automatically as it arrives or departs. The UHF Gates function along with with UHF ID cards or BSD UHF Passive Tags as a walk through solution for Automatic Time & Attendance; this eliminates the need for flashcards, which saves time and energy and makes the process more convenient.
PHYSICAL PARAMETERS
|
Dimension |
182cm x 304cm x 152cm |
|
Weight |
18 Kg |
|
Indicators |
Buzzer & LED |
|
Housing |
Cold Rolled Steel & Aluminuium |
ENVIRONMENTAL SPECIFICATION
|
Temperature |
-25oC to +60oC (Operating), -25oC to +80oC (Storage) |
|
Humidity |
5% RH – 95% RH non condensing |
|
Protection Class |
IP 54 |
UHF RFID
|
Work Frequency |
Standard ISM 865-868, 902 – 928 Mhz (Customizable) |
|
Protocol |
ISO 18000-6B, EPC Class 1 Gen2 (ISO 18000-6C) |
|
Read Range |
3 Cubic Meter |
|
No. of Towers |
2 |
|
Antenna |
Built in 9 dBi Circular Polarized Antenna |
|
Operating Mode |
Answer |
|
Reading Rate |
Software Programmable |
|
Power Output |
0-30 dBm (adjustable) |
|
Packing |
In wooden Box |
|
Power Supply |
100-240V, DC+9V (Power Adapter) |
|
Power Consumption |
1 W |
|
Interfaces |
RS232, RS485, TCP/IP (Wi-Fi Optional ) |
|
Software Support |
SDK Provided |
OPTIONAL
|
Display |
Integrated 10″ Touchscreen |
|
Height |
215cm |
|
LED Red |
Standby Mode |
|
LED Green |
Inventory Mode |
