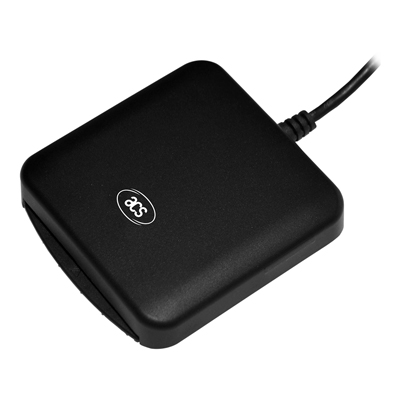

ACR39U Smart Card Reader ushers in new and modern technology to the world of smart card readers. This compact smart card reader brings together sophisticated technology and modern design to meet rigorous requirements of smart card–based applications.
It also features a USB Full Speed interface and a smart card read/write speed of up to 600 Kbps. Highly durable, ACR39U can last for 200,000 card insertion cycles. ACR39U also has various certifications , such as EMV™ Level 1 (Contact) and PBOC, making it the ideal smart card reader for your e-Banking and e-Payment application needs
It is fully compliant with PC/SC and CCID specifications, and supports various operating systems such as Windows®, Solaris™, Linux®, and macOS. Additionally, ACR39U may be used on mobile devices running on the Android™ platform versions 3.1 and above.
With its sleek, stylish design and powerful core, the ACR39U is the ideal peripheral for your smart card applications.
| Physical Characteristics | |
| Dimensions (mm) | 72.2 mm (L) x 69.0 mm (W) x 14.5 mm (H) |
| Weight (g) | 65.0 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | USB Type-A |
| Power Source | USB port |
| Speed | USB 2.0 Full Speed (12 Mbps) |
| Compatible with USB 3.0 | |
| Cable Length | 1.5 m (Non-Detachable) |
| Contact Smart Card Interface | |
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V) |
| Protocol | T=0; T=1; Memory Card Support |
| Others | Mykad Card, CAC, PIV, J-LIS, SIPRNET Smart Cards |
| Certifications/Compliance | |
| Certifications/Compliance | Standards |
| USB CCID, PC/SC, Microsoft® WHQL, EMVTM Level 1 (Contact), PBOC Level 1 (Contact), J-LIS, TAA | |
| Regulatory/ Environmental | |
| CE, IEC/EN 62368, FCC, VCCI, UKCA, RoHS, REACH, KCC, UL, BIS | |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows®, Linux®, macOS, Solaris™, Android™ |
