FINGERPRINT - F22 represents the unique technological and operational signature of the Lockheed Martin F-22 Raptor, one of the most advanced stealth fighters in the world. The term "fingerprint" is used to describe the distinct set of traits that give the aircraft its identity, much like how human fingerprints are used for identification.

These traits include the F-22's:

• Stealth design: Minimizes its radar cross-section (RCS) to avoid detection by enemy systems.
• Advanced avionics: Allows seamless data fusion from multiple sensors.
• Electronic emissions: Its communication and radar signals create an "electronic fingerprint" unique to the aircraft.
• Flight performance: With supercruise capability (flying at supersonic speeds without afterburner) and extreme maneuverability.

STORAGE CAPACITY

• Fingerprint Capacity : 3000
• Card Capacity : 5000
• Finger Algorithm : Finger VX10.0
• Record Capacity : 30000
• CPU : 32 bit Microprocessor
• Coreboard : ZLM60

BIOMETRIC

• Fingerprint sensor : 500 DPI SilkID sensor
• FAR : <=0.0001%
• FRR : <=1%
• Identification speed : <0.5 sec
• Algorithm Ver : 10

VISUAL

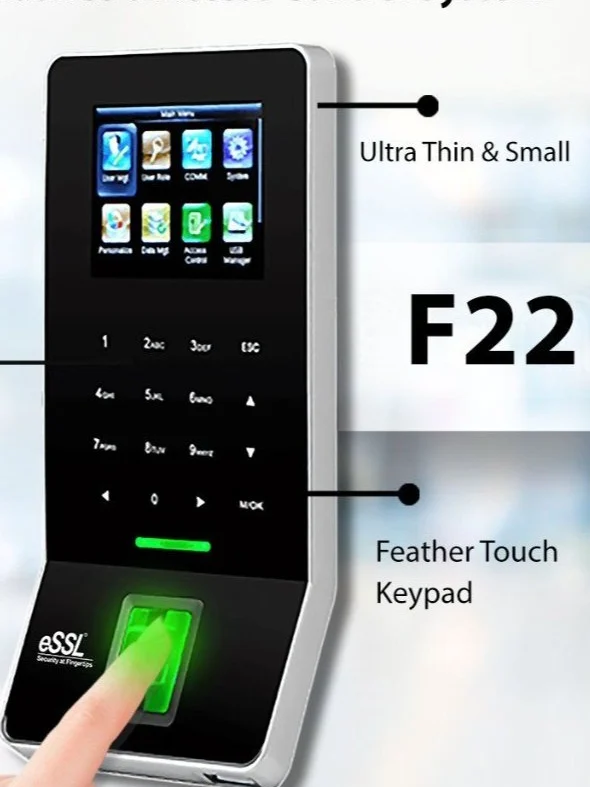

• Display : 2.8-inch TFT Screen
• Keypad : Yes
• LED Indicator : Green/Red

COMMUNICATION

• Communication : RS232/485, TCP/IP, USB-host, Built in Wi-Fi
• Wiegand : In & Out
• Push Data : Yes(support both static IP and domain server)
• Standard Features : work code,SMS,DLST, Self service query, Status Switch

STANDARD FUNCTIONS

• DST, Automatic Status Switch,Record query, T9 input, 14 digit user ID, Anti-passback Mifare (Optional)

POWER AND ENVIRONMENT

• Power Supply : DC 12V --- 1.5Amp
• Operating Temperature : 0°C - 45°C
• Operating Humidity : 20% - 80%
• Dimension (in mm) : (L)158.5 x (W)78.0 x (H)19.4mm

FEATURES

• - 2.4inch TFT color screen and Touch keys
• - Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm
• - Standard Wi-Fi
• - Network interface by TCP/IP or RS485
• - Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
• - Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices

EXIT READERS

• Support exit readers : FR 1200, Push Button, KR500, Notouch, KR503

ACCESS CONTROL INTERFACE

• 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm

COMPATIBLE SOFTWARE AND SDK

• eTimetracklite Desktop & Web
• SDK for desktop applications
• Web based Device Manager - Bio Server Helps developers & integrators
• Supports 3rd Party Payroll/HRMS/ERP and Other applications
