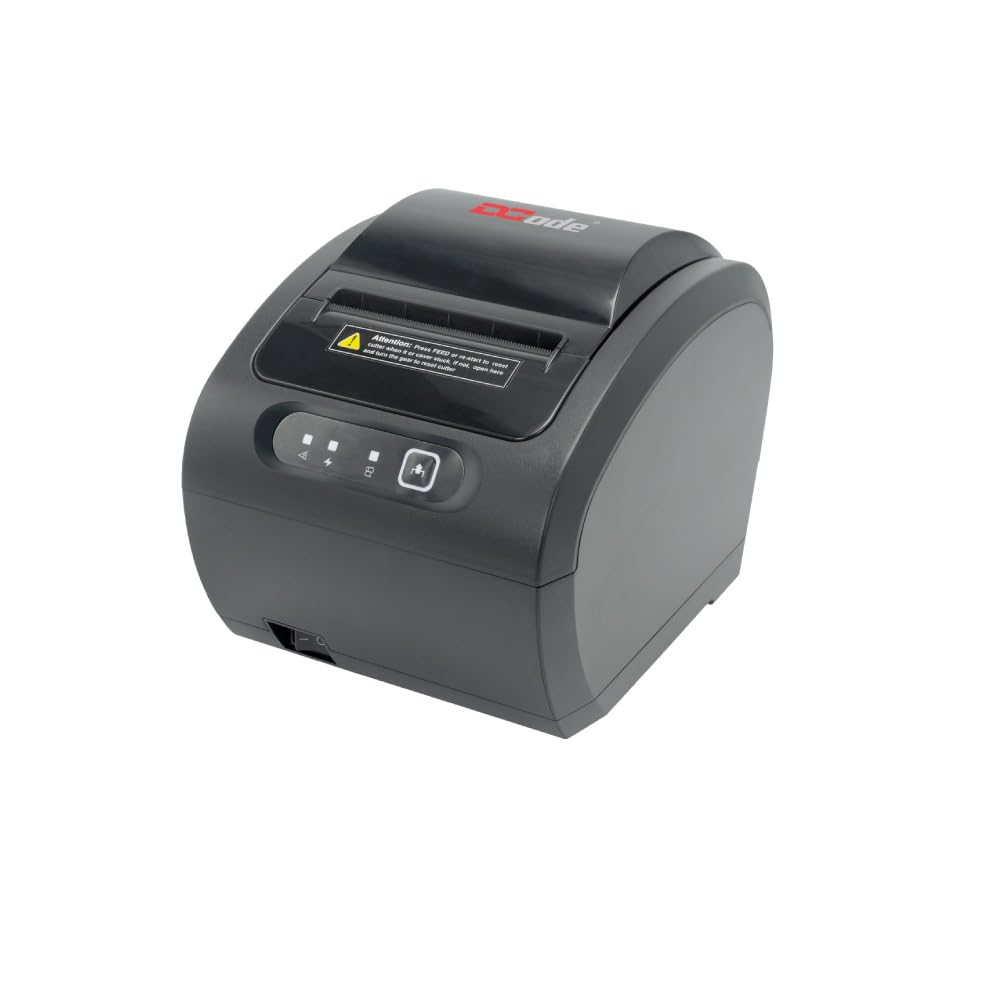

The Dcode DC3R1 Thermal Receipt Printer is a reliable and efficient solution designed for fast and high-quality printing in industries such as retail, hospitality, and logistics. With its direct thermal printing method, the printer ensures high-speed output without the need for ink or ribbons. Compact and lightweight, it fits seamlessly into various environments while delivering superior performance for high-volume printing tasks.
Wide Paper and Print Width: Supports 79.5 ± 0.5mm paper width with a maximum print width of 72mm, accommodating a variety of receipt formats.
Fast Printing Speed: Capable of printing at 200 mm/s, ensuring quick processing in busy environments.
Adjustable Line Spacing: Features a 3.75mm line spacing that can be adjusted via commands for customized layouts.
Column Flexibility: Supports 48 columns for Font A and 64 columns for Font B on 80mm paper, offering flexibility for text density.
1D & 2D Barcode Support: Prints a wide range of barcodes, including UPC-A, CODE39, CODE93, QR CODE, and PDF417, enhancing its versatility for transactional and inventory purposes.
| Printing Method | Direct Thermal |
| Paper Width | 79.5 ± 0.5mm |
| Print Width | 72mm |
| Column Capacity | 576 dots / line |
| Printing Speed | 200 mm/s |
| Interface | USB + LAN |
| Line Spacing | 3.75mm (Adjustable by Command) |
| Column Number | 80mm paper: Font A - 48 columns / Font B - 64 columns |
| Character Size | ANK, Font A: 1.5x3.0mm | Font B: 1.1x2.1mm |
| Auto Cutter | Available |
| Barcode Character | 1D Barcode: UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D Barcode | QR CODE / PDF 417 |
| Input Buffer | 96 Kbytes |
| NV Flash | 256 Kbytes |
| Power Adaptor | AC 100 ~ 240V, 50 ~ 60Hz |
| Printer Input | DC 24V/2.5A |
| Cash Drawer | DC 24V/1A |
| Weight | 1.01 KG |
